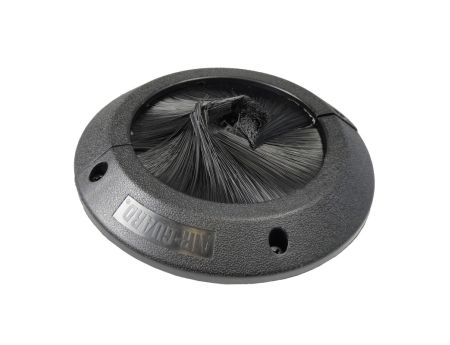

Air Guard 5" Round - Surface Mounted

The AirGuard 5" Surface Mount is a split, round, surface mount brush grommet that is an ideal smaller grommet for sealing holes and openings in floors, walls and ceilings. Perfect for retro-fit applications for a larger power cable, or small bundles of data cables. The grommet can seal openings for smaller diameter hard pipe or all sorts of protrusions that need to be sealed.

The Surface Mount design allows for quick and easy installation for any existing floor, wall or ceiling holes or penetrations. Simply strip away the tape exposing the adhesive foam strip and position around the opening and press into place. Secure in place with the included self tapping screws.

The added benefit of the underside EPDM rubber gasket creates an airtight seal while providing a secondary system for limiting the passage of debris and contaminants through the opening.

Constructed of flame retardant ABS polycarbonate material. ABS, EPDM and Nylon Brush Polymers all carry a V-O rating per the ANSI/UL 94.

Meets NFPA 75 Standards for Flame Spread Rating. Dimensions:

• Cutout Diameter – 5”
• Outer Diameter – 6-1/2”
• Inner Diameter – 4-1/2”
• Inset Depth – 1”
• Raised Height – 7/8”
