KoldLok ® Mini Brush Grommet - Case

$480.00
  $290.00
(case of 10)
Quick Overview

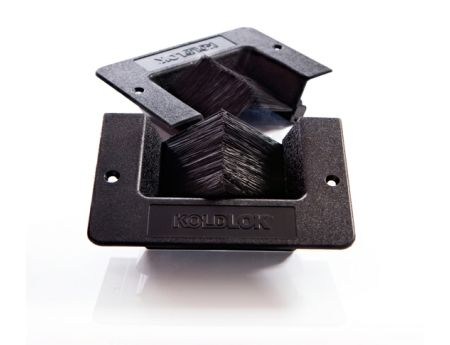

Energy-efficient airflow management device designed to seal cable openings in new and existing raised floor systems. Split design allows product to be installed or removed without disturbing cables. Overall size 7 11/16" x 5 11/16" x 1 1/2" deep. Usable cable area: 5" x 2 1/2". Self-drilling screws included. Color: Black. Carton of 10.
Additional Information
Model K10077
Notes In Stock

Description

By installing KoldLok® Raised Floor Grommets, you can optimize the effectiveness of your existing cooling equipment and manage increasing heat loads. The patented KoldLok® sealing system specifically addresses bypass airflow and its detrimental effects on data center cooling.

Your IT equipment is generating more heat than ever and the cost to cool that equipment is increasing. According to The Uptime Institute, Inc.® electricity consumed by IT equipment is the primary driver of data center infrastructure costs. Based on measurements at multiple data centers, 50 - 80% of valuable conditioned air is not reaching the air intake of IT equipment due to unsealed cable openings. This lost air, known as bypass airflow, contributes to equipment hot spots, cooling unit inefficiencies, and increasing infrastructure costs. Sealing cable openings is an essential component of IT equipment reliability and availability.

KoldLok® Raised Floor Grommets will:

  • Optimize your current cooling infrastructure
  • Mitigate equipment heat loads
  • Increase data center reliability



    Cost-effective benefits of KoldLok® Grommets:
  • Increases existing cooling unit capacity
  • Reduces the need to purchase additional cooling units
  • Improves equipment reliability and extends equipment life
  • Increases static pressure under the raised floor and improves cool air delivery through perforated tiles or floor grates
  • Facilitates Cold Aisle/Hot Aisle best practices
  • Energy Star rated.



    Special Features:
  • Made with fire-rated resin and filaments that meet UL94 V0 standards
  • Smaller size offers flexibility for data centers that have multiple cable opening sizes
  • Meets smaller cable opening standards specified in new data center builds
  • Cost-effective method of separating data cabling from power cabling
  • Impact-resistant and durable
  • Contains no loose or partially fastened parts that can become separated or fall through the raised floor
  • Satisfies NFPA 75 Section 5-4.4 requirement by self-dressing the raw metal edges of raised-floor tile cable openings
  • Compliant with the directive that restricts the use of certain hazardous substances in electrical and electronic equipment (RoHS)
  • Carton of 10.
