RTG Connector Grounding Kit for ESD Carpet

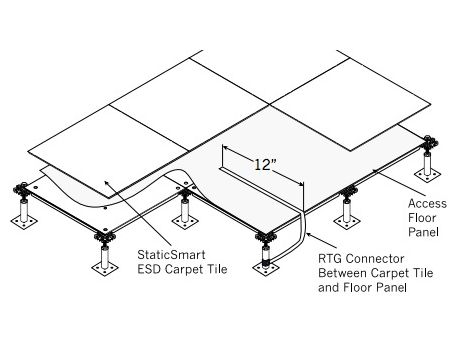

Attach 1 (RTG) Connector to the raised floor understructure every 1,000 square feet.

For stringer and bolted corner lock systems, have a contractor wire the access floor system to a bolt and three successive pedestal heads and run the wire every 1000 square feet. In locations where the access floor systems is being grounded, install the RTG Connector. Grounding system for the access floor should follow recommendations of electrical contractor and building codes. Warning: The foil strip has sharp edges - wear gloves when assembling.

This Grounding Kit consists of:

• Copper grounding strip 2” wide x 24"
• 26 gauge copper alloy 110
• 1" spring steel conduit clip with corrosion resistant coating
• 1/4” - 20 x 1/2” zinc plated machine screw
• Lock washer
• Nut assembly
