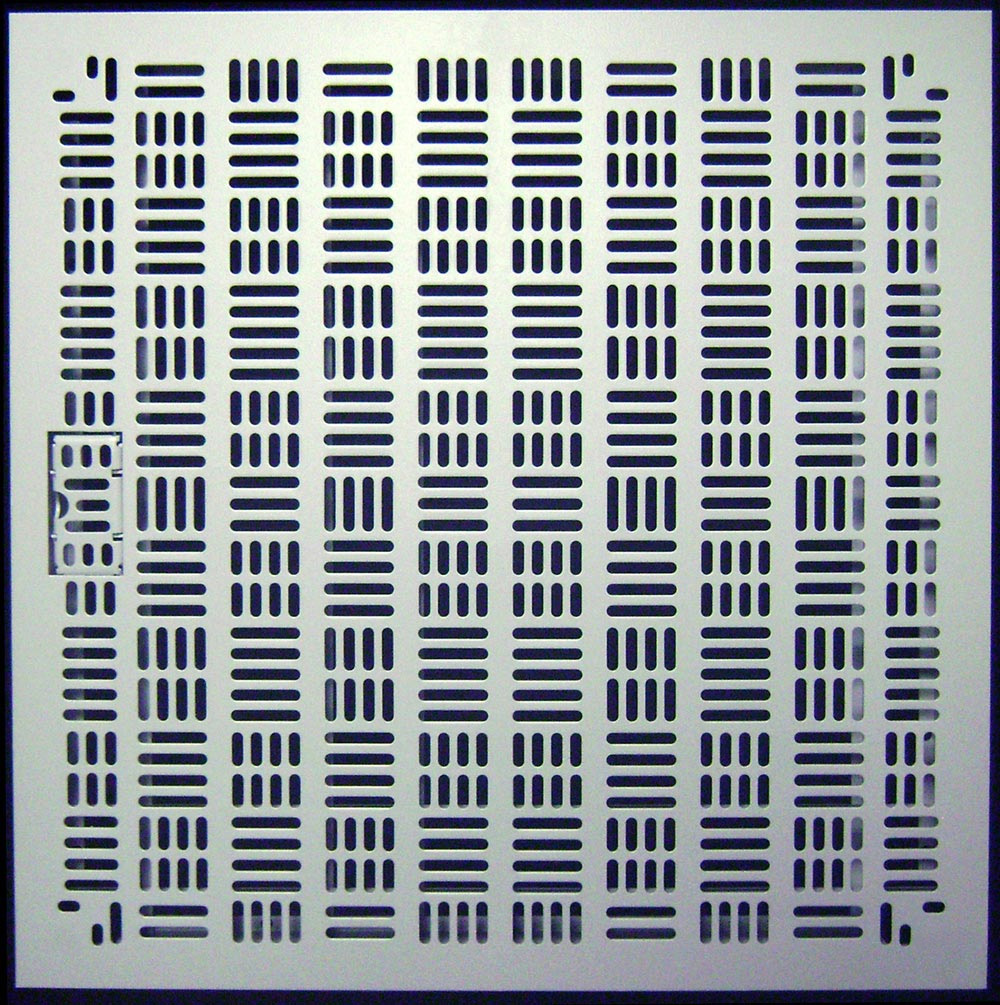

The Infinity Air Grate is a heavy duty 24" x 24" perforated steel floor panel that can adapt into virtually every access floor system ever made. With a massive 55% open area, the Infinity Air Grate delivers over three times the cold air flow of other perforated panels along with the strength to support a static load of 1,500lb.
A durable, epoxy white powder coat finish is standard on all Infinity Air Grates. It provides a long-wearing, corrosion-resistant finish to ensure years of outstanding service.

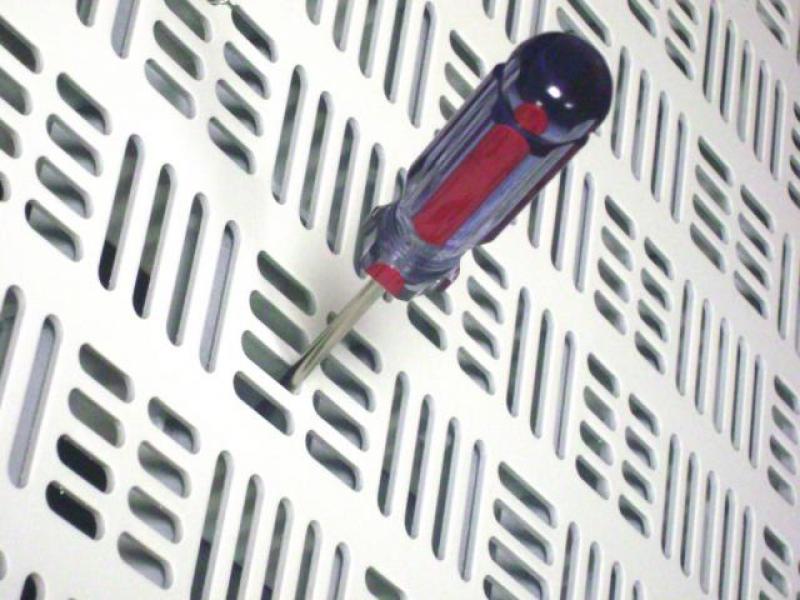

Infinity® was the first to introduce a universal air grate to the market in 2006 with high performance air cooling and adaptability between wood core and steel panel systems WITHOUT TOOLS OR COSTLY MODIFICATIONS. This can significantly reduce the high cost of skilled labor when multiple systems are used within the same facility or co-locations.

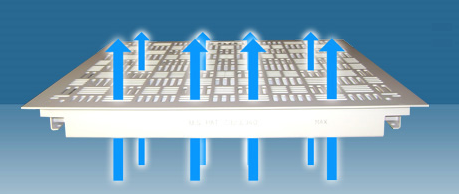

MAX-AIR delivers 15% more cool air volume than Infinity AIRSTREAM and weighs under 28 LBS making it one of the lightest, easiest panels to manage in the data center. MAX-AIR's enhanced slot design allows for greater air volume transfer and maximum cooling effectiveness closer to the rack. Optimal supply air temperatures to Lo-Mid-Hi server inlets improve energy efficiency and overall equipment reliability.
Max-Air For Woodcore Systems
Max-Air For Steel Systems
A self-retracting, easy-lift handle is built into every Infinity® Air Grate, making it the simplest panel to lift and manage. With a matching slot design it is barely noticable, yet very convenient. One finger raises the handle allowing quick removal of the grate and eliminates need for additional lifting device.
