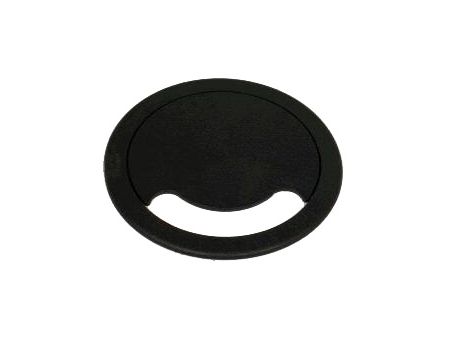

6.5 inch Grommet

Grommets are sleeves which are installed into raised floor panels. They protect cables from being cut by the sharp edges created after cutting into a panel for wire access. In addition, they protect employee fingers from sharp panel edges.

Grommets are made from injected molded plastic resins designed for long-lasting wear and are resistant to chipping or breakage. They have a snap-in swivel lid that accommodates cables.

A 6 5/8" hole is needed for installation, and the internal cable opening size is 6 1/4". This grommet is 1 1/2" deep for full protection from the cut raised floor panel. It is manufactured from flame retardant A.B.S. resin, a strong durable plastic material. This grommet has a two piece heavy duty snap-in swivel lid which allows for partial opening or full opening with the lid in place. The inside lid adjusts from 1" - 5" to accommodate different cable sizes.

Remember a hole saw is required to cut the opening in a floor panel when using circular grommets. For added stability, there are 2 screw holes in the grommet base which allow for mounting. Screws are not provided.
