KoldLok ® Wave Grommet - Case

This product is an OEM from the original manufactuer Koldlok branded by Tate.

The KoldLok® Wave was developed to provide the best seal against wasted bypass airflow. These energy-efficient grommets are proven to increase the volume of conditioned air delivery through perforated tiles and floor grates. Increasing the existing cooling unit capacity in a facility reduces the need to purchase additional cooling units, which is both economical and smart. That is why KoldLok® Wave grommets are the premium choice for new and existing floor systems.

Benefits

• Increases cooling unit capacity by sealing against bypass airflow
• Allows for greater IT density in data centers
• Increases static pressure under the raised floor
• Improves cool air delivery through perforated tiles and floor grates
• Facilitates hot aisle/cold aisle best practices
• Can reduce the need to purchase additional cooling units

Features

• Sealing Effectiveness - New, patent-pending waveformed thermoplastic elastomer offers the best sealing against bypass airflow, unsurpassed by any brush grommet on the market
• Usable Cable Area - Offers more than two and a half times more usable cable area than a leading brush competitor
• Maintenance Free - Wave-formed material seals and reseals around cables with no additional maintenance or monitoring required

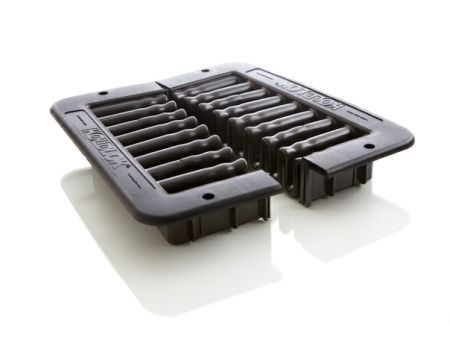

• Configuration - Split design allows tiles to be removed without capturing cables
• Designed for Safety - Thermoplastic elastomer material is flame rated HB UL94, and an optional safety cover is available
• Longevity - Durable, impact-resistant ABS frame

Floor Mounting System

Four (4) self-taping screws are provided for installation

Size

• Overall Size: 11" x 8-7/8" x 1-7/8"
• Product Height Above Floor: 3/8 in.
• Product Height Above Floor with Cover: 1 in.
• Usable Cable Area: 7-3/4" x 5-7/8"
• Cut Required - Interior of the tile: 9-1/4" x 6-3/4"
